Equipment List

Vertical Machining Center BMV35, BFW,
400 x 350 x 350 VF – 30 CNC Milling
BFW,
800 x 350 x 380 mm Haas VF-6-50 Taper Vertical Machining Center
VF-2 milling machine
BFW, 800 x 230 x 400 mm
Universal Milling Machine Ghang Micromatic 600 x 300 x350 mm

PILATUS 20T L5 CNC LATHE, LMW, 150 x 400 mm
Pinacho Lathe SP200, Pinacho Sweden, 140 x 900 mm
Turn Master 35 Lathe, Kirloskar, 135 x 700 mm

BK OZ 1400 Hydroptic Jig Boring and Grinding machine- 3 Axis, WMW,2200 X 1400 mm

Precision Jig Mill (Plan Miller ) Spiramatic 4H-96 , Devileg Machine Co., 1016 X 2438 mm

Devlieg 43 J 60 4 Axis Cnc Jig Mill 4" Spindle With 16" Travel 'X' 60" 'Y' 60" Platinum 16" Also A Rotary Table With 360 Positions And 3-D Capabilities.

Universal Grinding Machine- GUC-260S, Micromatic, 135 x 500 mm

Universal Grinding Machine- GUC-350, Micromatic, 350 x 1100mm

NH 500 Surface grinder, Alex, 410 x 1200 mm

JS 540 Surface Grinder, John Shipman, 550 x 2000 mm Jones & shipman Model 1070 cylindrical Grinder

Bench Drilling Machine, Thakoor, 3/4 inch

Unisig-Kansai KSG 1000 Deep Hole Drilling Machine

PDF - Portable Document Format

DWG , DXF - Drawing Format, or Drawing Exchange Format

IGES - Initial Graphics Exchange Specification, ANSI file format.

STEP - Standard for the Exchange of Product Model Data

SLDPRT- Solidworks Part files

.X_T- 3D Parasolid Files

JPEG/JPG- Image Files

TIFF - Tagged Image File Format

Boring: ±0.002 mm

Milling: ±0.005 mm

Precision

Tight Tolerance by machine lapping

FEA- ANSYS R18 Mechanical

3D Design – SolidWorks

3D Design – CATIA V5

3D Design – Creo (Pro- E)

Hydrosym- Hydraulic circuit design software

2D Design- Autocad

CAM – MasterCam

Kasto Automatic Material Saw with 16" Bar Capacity

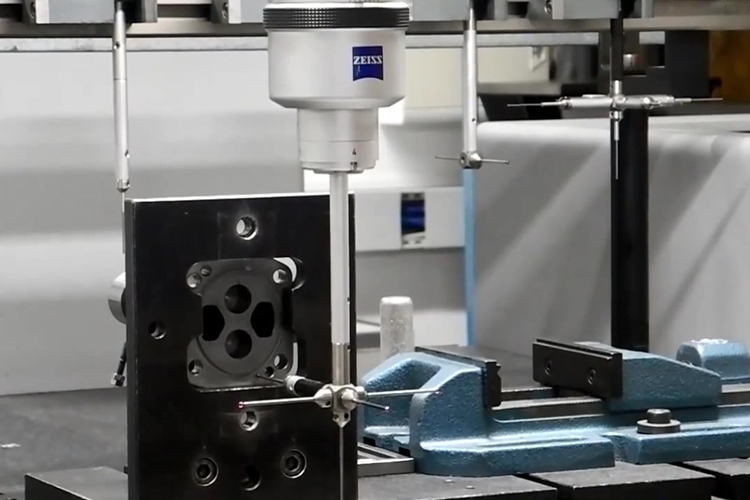

Zeiss Accura II, With Automatic Probe Changer, Controls- Calypso Rockwell Hardness Testers Brown & Sharpe 36" Micro Hite 350 Gauge Doall Trimos Height Guage Granite Surface Plate (600 x 600) - 01 Nos. Granite Surface Plate (2000 x 2000) - 01 Nos. Casting Surface Plate (600 x 600) -01 Nos. Slip Gauges (HSS) 64 Piece -05 Nos. Sine Bars -03 Nos. Range of Verniers (150mm – 1.5m) Micro Meters (25mm – 350mm) Bore Gauges set (6mm – 350mm) - 01 Nos. Height Gauges -02 Nos. Slip Gauges – Carbide -02 Sets. Electronic Height Gauge -01 Nos.

Wika Clamping force measurement gauge

Outsourced Facility: Radiographic testing of Casting and Raw Materials

A wide variety of miscellaneous inspection equipment is available as well, including : V – Blocks, Height Guages, Precision Cylinder Squares, Precision Angle and Sine Plates, Micrometers, Thread Micrometers, Vernier Calipers, Bench Centers, Guage Ball Sets, Precision Levels

Paint Booth 10' x 15' with Bink Paint System and Exhaust Unit Sand Blast Machine 3' x 3' Voltas 2200 Kg Lift Truck 2 Ton Overhead Crane Big Joe Lifts Beamer 20 Watt Laser Marking Machine

Stress relieving (Furnace size 5m*3m)- Karnataka
Thermal Engg Company, Peenya, Bangalore.
